New Xiangli: Combination of environmental protection and economic benefits

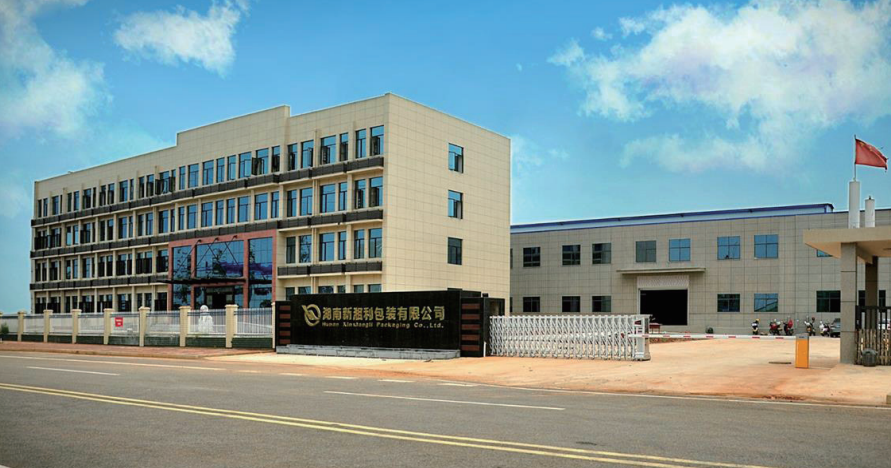

Hunan Xinxiangli Packaging Co., Ltd., located in Yueyang, Hunan, was founded in 2000 as Changsha Xiangli Packaging Co., Ltd. The company has a registered capital of 21 million yuan and covers an area of 24,000 square meters. It mainly produces various kinds of plastic color printing packaging films and bags. Its products are widely used in food, daily chemicals, agricultural chemicals and other industries. It is a plastic color printing packaging enterprise integrating production, research and development, and sales. Since its establishment, the company has continuously improved its technical equipment, process
"The source of Hunan, benefit to the future"
Hunan Xinxiangli Packaging Co., Ltd., located in Yueyang, Hunan, was founded in 2000 as Changsha Xiangli Packaging Co., Ltd. The company has a registered capital of 21 million yuan and covers an area of 24,000 square meters. It mainly produces various kinds of plastic color printing packaging films and bags. Its products are widely used in food, daily chemicals, agricultural chemicals and other industries. It is a plastic color printing packaging enterprise integrating production, research and development, and sales.
Since its establishment, the company has continuously improved its technical equipment, process research and development, and management level. At present, the company has 3 high-speed printing machines, 3 high-speed dry laminating machines, 2 solvent-free laminating machines, and 24 high-speed bag making machines.
After more than 20 years of development, the company has established a good reputation in the industry with high-quality products and satisfactory services, and has long-term stable customer resources in Hunan and even surrounding areas.
Hunan Xinxiangli Packaging Co., Ltd. adheres to the business philosophy of "taking customers as the center", adheres to the principle of integrity first and quality as the king, constantly improves new technologies and processes, improves management level, and strives to provide customers with better products and services.
Xinxiangli attaches great importance to environmental protection while doing well in its products, because it is essential to fulfill its social responsibility to ensure the long-term sustainable and healthy development of the enterprise. At present, VOC environmental governance is the most important part of fulfilling its social responsibility.
Therefore, Xinxiangli chose the RTO of ATI Group after careful consideration and repeated comparison when selecting environmental protection treatment equipment. ATI Group RTO did not disappoint customers' expectations, achieving a combination of compliance and economic benefits. The treatment efficiency was>99%, and the emissions were lower than 30mg/m3. At the same time, the power charge of the whole plant was reduced by 2000 °/day.
ATI Group's governance line for New Xiangli is:
1) Printing machine full-automatic LEL air reduction and enrichment: before air reduction, each printing line has a large exhaust air volume. Under the condition of fixed vehicle speed and exhaust air volume, the VOC concentration of color decks with small printing volume is low under this exhaust air volume, and the VOC concentration in the exhaust air of color decks with full version will not be very high. Low concentration of production emissions will have advantages in terms of safety, but from the perspective of energy consumption, the more exhaust air, the higher the energy consumption of the oven. The more exhaust air, the lower the VOC concentration, which is not conducive to the self maintenance of RTO. The higher the energy consumption of RTO equipment, the cumulative increase of the total energy consumption of production equipment.
In view of this phenomenon, ATI Group has made corresponding transformation on the printing oven, designed energy conservation and emission reduction under the condition of ensuring safety, and through the addition of LEL detector and pipeline rectification, increased the circulating air volume to the maximum extent and reduced the exhaust air volume, so as to achieve energy conservation and emission reduction; The color deck not used during printing can be turned off to reduce the exhaust air volume. At the same time, the negative pressure of the production line oven shall be ensured to prevent gas overflow. The three elements of air reduction - safety, ensuring the micro negative pressure of the oven and meeting the standard of solvent residue can be organically combined by the way of fully automatic air reduction and enrichment;

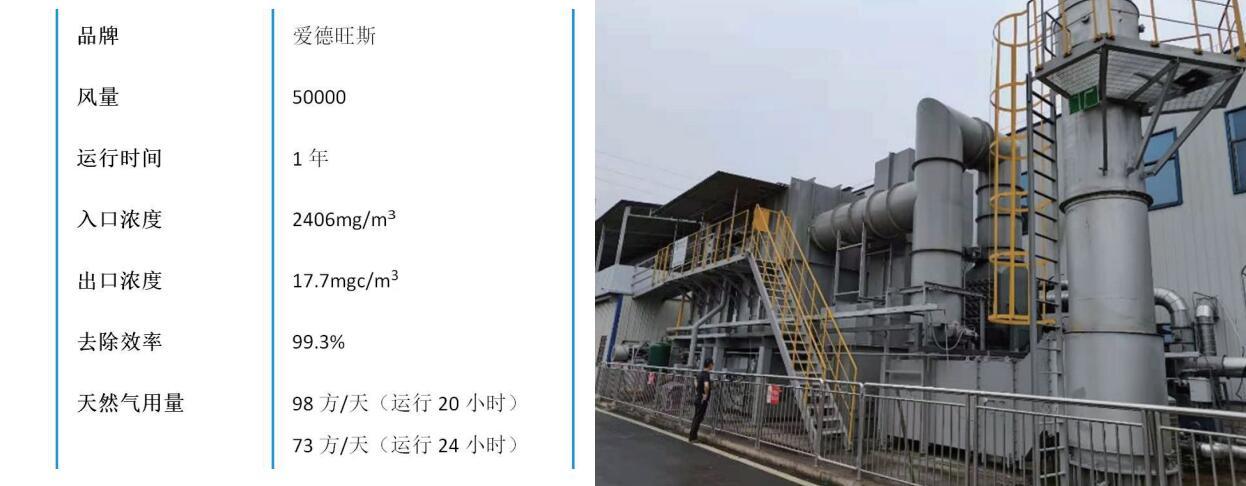

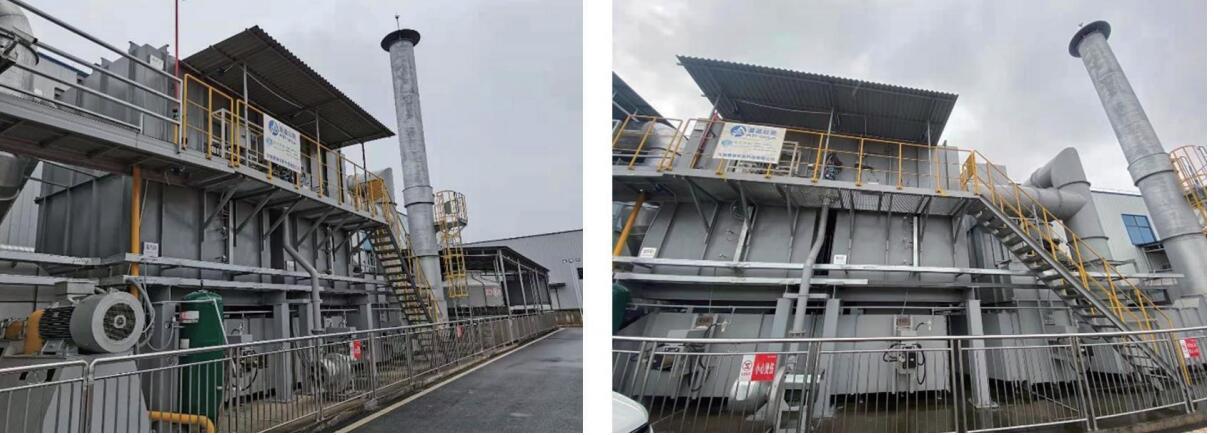

2) The high concentration waste gas of the reduced air printing machine and the laminating machine is treated by RTO: the organic waste gas is directly connected to the RTO for combustion treatment. When the concentration of the waste gas reaches the equilibrium concentration (about 1.8g/m3) required for RTO self maintenance, the RTO basically does not consume fuel during normal operation, but only consumes power to maintain the operation of the equipment. The RTO air volume is 50000m3/h, RTO is a three chamber structure, the thermal efficiency is 95%, and the removal rate is more than 99%;
3) Waste heat generated by waste gas treatment shall be reused. After air reduction and concentration increase, the concentration of the waste gas after RTO treatment increases, so there is a certain amount of waste heat available for use. According to the actual needs of customers, ATI Group uses steam water waste heat recovery to recover the waste heat, and the high temperature steam and water generated from the recovery provide heat for equipment drying and heating, so as to further save energy consumption.
Finally, the treatment efficiency of>99% and ultra-low emission of less than 30mg are achieved. When using FID for actual measurement, the average concentration at the outlet is only 17.7mg/m3. The recycling of waste heat reduces the power charge of the whole plant by 2000 °/day (including RTO's own power charge). Finally, the perfect unity of social and economic benefits will be achieved.
